2.2.2. Securing and passing credentials¶

You need to store passwords for use in Ansible. Use ansible-vault. The ansible-vault command has three subcommands that are frequently used.

• create
• edit

Create vault for credentials

1. Create a vault creds.yaml.

   • Type ansible-vault create creds.yaml

   Use create to create the initial files that will be vault encrypted. Vault will prompt you for a password. For the purposes of this lab enter password . It will then open up a text editor (vi) for you to write data to it. Data of any form can be written, but text is usually the format that is used.

   • Type i then enter the following in the editor.

   bigip_user: "admin"
   bigip_pass: "admin"


   Type esc key then :wq to save and quit the editor, the file will automatically be encrypted for you.

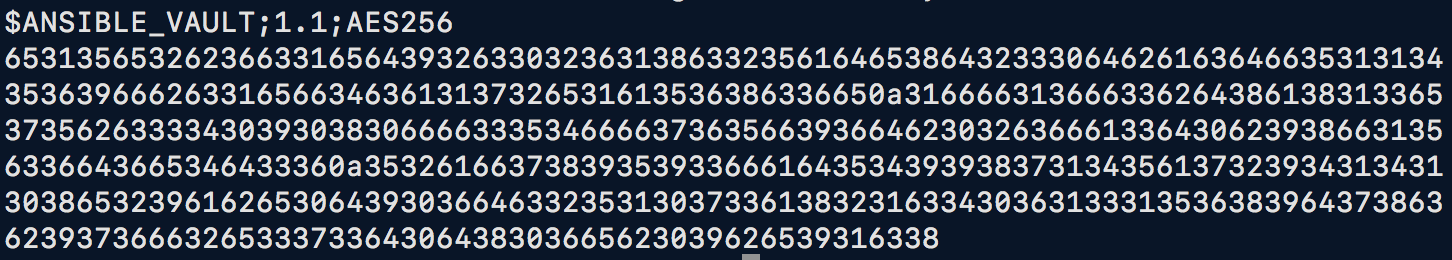

   • Type cat creds.yaml to ensure file is encrypted.

   If successful, you should see similar results



2. Copy playbooks/cmd.yaml to playbooks/cmd1.yaml and delete vars_prompt section and replace with new vars section.

   • Type cp playbooks/cmd.yaml playbooks/cmd1.yaml
   • Type nano playbooks/cmd1.yaml

   ---

   - name: "Run a tmsh command"
     hosts: bigips
     gather_facts: False
     connection: local

     vars:
       validate_certs: no
       server: 10.1.1.245
       username: "{{ bigip_user }}"
       password: "{{ bigip_pass }}"

     tasks:
       - name: View system version and LTM configuration
         bigip_command:
           commands:
             - list /ltm virtual all
             - list /ltm pool all
             - list /ltm node all
           server: "{{ server }}"
           password: "{{ password }}"
           user: "{{ username }}"
           validate_certs: "{{ validate_certs }}"
         register: result

       - debug: msg="{{ result.stdout_lines }}"


3. Run this playbook.

   • Type ansible-playbook playbooks/cmd1.yml -e @creds.yaml --ask-vault-pass

   You will be prompted for vault password before executing the playbook. If successful, you should see config for virtual servers, pools and nodes.
